Server Room Mapping

Scott M. shared this question 5 months ago
Discussion Open

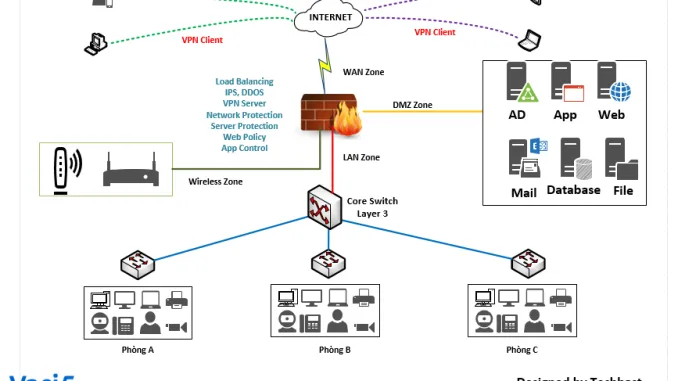

Wondering if anyone was used MindManager to map their server room/network layout? It appears from some research that MS Visio is the chosen software for this type of mapping. I have seen some maps on the Internet, but they are not importable into MindManager (imx).

Replies (2)

1

You can do something like this using the concept map template, though it isn't optimised for this purpose. For example, you will probably have to import some of the images and format the relationship lines to achieve the same effect.

1

Tanks Alex. I'll have a go and start dropping images into topics and see where it goes.

1

Thanks Scott. Have a look at the MindManager image library first, though it's surprisingly limited. The few IT-related images in the library appear to be mostly located in the "Gadgets" folder, which tells you something.

---
