MindManager User Community Support Forum Topic Question MindManager Mac

Category MindManager Mac

Version (if applicable) 24.1.155

Boundaries not grouping multiple topics

Alec K. shared this question ago

Discussion Open

The boundary function isn't working. I select a root topic or multiple topics and the boundaries form individually around the sub topics.

Files:

Replies (5)

René W.

Power User

● 7 days ago

Is this a mind map or a flow chart?

Reply URL

Alec K.

New User

● 6 days ago

It wasn't created from a flowchart template. It uses topics rather than flowchart symbols. I'm describing it as a mind map and it is a .mmap file.
Does that help?

Files:

Reply URL

René W.

Power User

● 6 days ago

Can you send me the mind map? I would like to try it out. I have an idea of what it could be.

Reply URL

Alec K.

New User

● 6 days ago

Can I email it to you?

URL

René W.

Power User

● 6 days ago

winter@ubrw.de or as an attachment

URL

Nick D.

MindManager Expert

● 6 days ago

I could be wrong but the "subtopics" look like floating topics connected with relationships. Boundaries only work with subtopics that can be expanded and collapsed.

Reply URL

Alec K.

New User

● 6 days ago

Am I doing this wrong?

Files:

URL

René W.

Power User

● 6 days ago

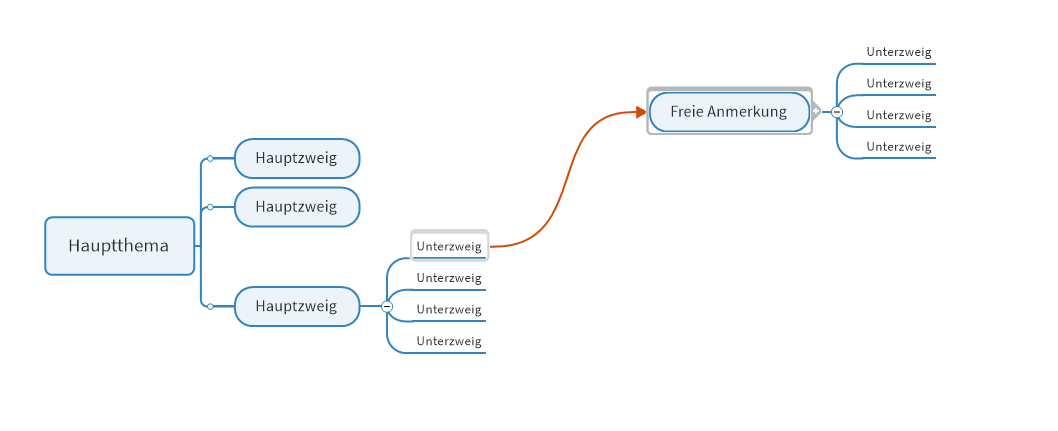

You are using floating topics.

URL

Nick D.

MindManager Expert

● 6 days ago

I think that dragging the "+" away from a selected floating topic creates a new relationship and floating topic.

To create a subtopic that can be included within it's parent topic boundary, use Insert > Map Topic > Add Subtopic. The menu should also show the keyboard shortcut, which is "Insert" on Windows but I don't know what it is for Mac.

URL

Alec K.

New User

● 6 days ago

Thanks Nick and Rene,
You're both correct. I'll need to think of another way to achieve the grouping.

If floating topics could encompassed by a boundary in a future update this would be a great feature.

URL

Nick D.

MindManager Expert

● 6 days ago

Background shapes can be used to visually group floating topics and can be a "topic container", meaning the topics get moved with the background shape if it is moved.

URL

René W.

Power User

● 6 days ago

@Nick I think also
